Features

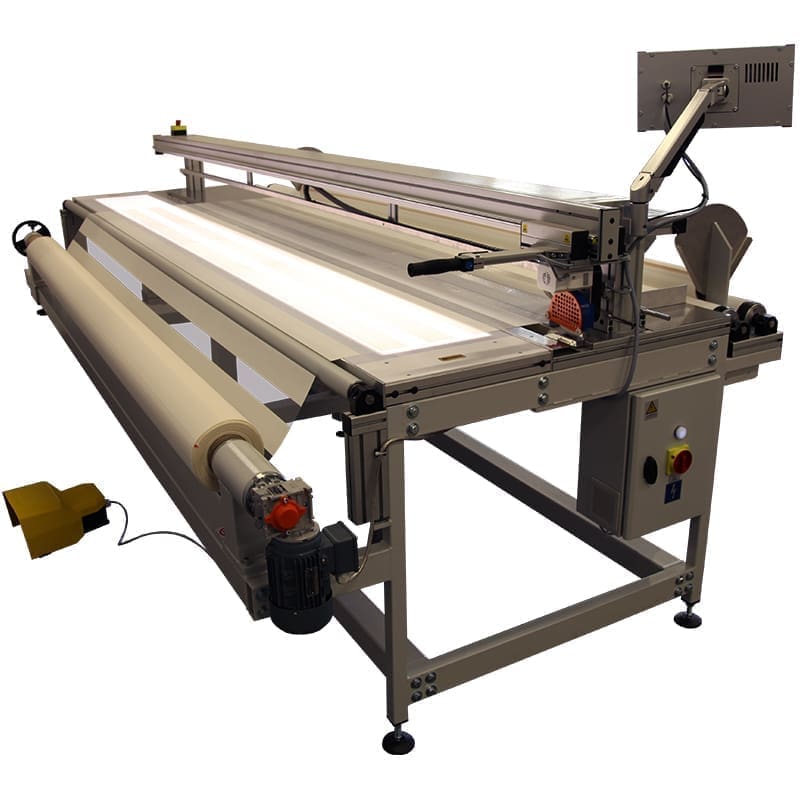

- Machine allows rewinding, inspection and cut-to-length of blinds fabric rolls up to 3200 mm width.
- Fabric is fed from two feed rollers.
- The machine winds fabric on a core placed in the winding cones.
- Inspection backlighting screen allows for inspection of damaged fabrics.
- Solid frame made of powder coated steel profiles.
- Rewinding speed is adjustable.
- Control panel is installed on swivel arm ensuring easy operation.
- The machine is equipped with digital counter that can measure in meters, feet or yards.
- Machine is equipped with manual fabric end cutter OT-1/R.
Specification
| Model | CTLR-3200 ECO |
| Voltage | 230 V |
| Maximum width of fabric roll | 1200mm – 3200mm |
| Maximum roll diameter | 300 mm |
| Overall dimensions (LxWxH) | 3970 mm x 1700 mm x 1575 mm (156” x 67” x 69”) |
| Power | 1.1 kW |
