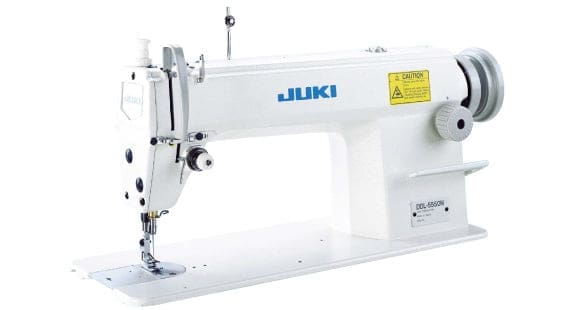

Juki DDL-5550N Single Needle Lockstitch Sewing Machine

Specification

Model name	DDL-5550N-7	DDL-5550NA-7	DDL-5550NH-7
Application	For medium-weight materials	For light-weight materials	For heavy-weight materials
Max. sewing speed	5,000sti/min*	4,000sti/min*
Max. stitch length	4mm		5mm
Needle bar stroke	30.7mm	29mm	35mm
Lift of the presser foot	By hand: 5.5mm, By knee: 13mm	By hand: 4mm, By knee: 9mm	By hand: 5.5mm, By knee: 13mm
Needle (at the time of delivery)	DB×1 (#14) For JE: 134 (Nm75)	DA×1 (#9) For JE: 134 (Nm65)	DB×1 (#21) For JE: 134 (Nm130)
Hook	Automatic-lubricating full-rotary hook
Lubrication	Automatic
Lubricating oil	JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Automatic reverse feed function	Provided as standard
Power reuirement	Single-phase 100~120V, 200~240V, 3-phase 200~240V
Power consumption	650VA
Total weight	81kg

Model name	DDL-5550N	DDL-5550NA	DDL-5550NH
Application	For medium-weight materials	For light-weight materials	For heavy-weight materials
Max. sewing speed	5,500sti/min*	4,000sti/min*
Max. stitch length	5mm	4mm	5mm
Needle bar stroke	30.7mm	29mm	35mm
Lift of the presser foot	By hand: 5.5mm, By knee: 13mm	By hand: 4mm, By knee: 9mm	By hand: 5.5mm, By knee: 13mm
Needle (at the time of delivery)	DB×1 (#14) For JE: 134 (Nm75)	DA×1 (#9) For JE: 134 (Nm65)	DB×1 (#21) For JE: 134 (Nm130)
Hook	Automatic-lubricating full-rotary hook
Lubrication	Automatic
Lubricating oil	JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

*“sti min”stands for“Stitches per Minute”

When you place orders

Gauge

DDL-5550N DDL-5550NA DDL-5550NH

Guage	THROAT PLATE				FEED DOG		PRESSER FOOT ASM.	Specification	Sewing features		Remarks	Model
Figure
	P/N	Needle hole	Number of grooves	Thick	P/N	Pitch	P/N
	B1109012A00	1.9	3	2.6	B1613012A00 B1613012A0B B1613012B00	1.5 – 1.15	B1524012A0 B1524012TA0 B15245520A0 D1524126WA0 D1524555DA0 *11028156	Light weight/ Medium weight	For general sewing		Throat plate (B1109012A0B) provides higher durability than throat plate (B1109012A00). Throat plate (B1109012A0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm. Throat plate (11028008) has engraved marker lines and numbersat intervals of 5mm. Throat plate (11001708) has grooves on the needle hole section and is effective to achieve well-tensed seam. Feed dog (B1613012A0B) has teeth made of urethane rubber and effectively prevents damages on the material.	DDL-5550N
	B1109012A0B	1.9	3	2.6
	B1109012A0F	1.9	3	2.6
	11028008	1.9	3	2.6
	11001708	1.9	3	2.6
	B1109012A0C	1.9	3	2.6	B1613012A0C	1.5		Medium weight	Since the material ls securely clamped, puckering and uneven material feed are effectively prevened.		Use of sliding foot (B1524227AA0) prevents puckerihg and uneven material feed more effectively.
	B1109012A0N	1.9	3	2.6	B1613012A00 B1613012A0B B1613012B00	1.5 – 1.15	B1524555DAN	Medium weight	Suited to frictional faabrlcs.		Throat plate have been finished with nidax.
	B1109012B00	2.2	3	2.6			B15240120A0 1524012TA0 B15245520A0 D1524126WA0 D1524555DA0 *11028156	Medium weight/ Heavy weight	For sewhg heavy weight materials in general.		Throat plate (B1109012B0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm.
	B1109012B0F	2.2	3	2.6				Medium weight/ Heavy weight	For sewhg heavy weight materials in general.
	B1109012C00	1.9	4	2.6	B1613012C00	1.5		Medium weight	Suited to long-sized materials which need to be fed straight.		Throat plate (B1109012C0B) provides higher durability than throat plate (B1109012C00). Throat plate (B1109012C00) is used with regular types of sewing machine. Throat plate (B1109012C0B) is used with the sewing machine with a thread trimmer. Throat plate (B1109012C0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm. Throat plate (11001807) has grooves on the needle hole section and is effective to achieve well tensed seams.
	B1109012C0B	1.9	4	2.6
	B1109012C0F	1.9	4	2.6
	11001807	1.9	4	2.6
	B1109012D00	1.9	4	2	B1613012D00	1.15			The feed dog has 4 teeth, but is suited to sewing sharp curves when compared with the other 4-teeth feed dogs.
	B1109012E00	2.4	3	2.6	B1613012A00 *B1613012B00	1.5 1.15		Heavy weight	The needle hole on the throat plate has a recess, which is efective when sewing a material to be sewn with a higher thread tension.		Slightly increase the pressure of the presser foot.
	B1109012E00	2.4	3	2.6	B1613012A00 *B1613012B00	1.5 1.15		Heavy weight			Slightly increase the pressure of the presser foot.		B1109012F00	1.6	3	2.6	B1613012B00 *B1613012A00	1.15 1.5	B15240120A0 B1524012TA0 B15245520A0 D1524126WA0 D1524555BA0 D1524555DA0 11028156	Light eight	Efectively prevents stitch gathering at the overlapped section of a material. The 3-teeth feed dog, when compared with the 4-teeth feed dog, is suited to the sewhg of sharp curves.	Slightly lower the pressure of the presser foot. Throat plate (B1109012F0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm.	DDL-5550N DDL-5550NA
	B1109012F0F	1.6	3	2.6													B1613012B00 *B1613012A00	1.15 1.5
	B1109012G00	1.6	4	2	B1613012D00	1.15	The feed dog has 4 teeth, but is suited to sewing sharp curves when compared with the other 4-teeth feed dogs.			Slightly lower the pressure of the presser foot. The presser (pair) (D1524555BA0) has a short sole with flexible maneuvering performance and wide open, allowing easier extra thread in a relative manner.
	B1109012i00	1.6	4	2	B1613012i00 *B1613552000	1.15	Suited to long-sized materials which need to be fed straight. Chain off thread is likely to be made.			Slightly lower the pressure of the presser foot. A thin needle (#8 to #10) is sulted. Throat plate (B1109012l0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm. Throat plate (B1109012l0B) provides higher durability than throat plate (B1109012l00). Throat piate (B1109012l00) is used with regular types of sewing machine. Throat plate (B1109012l0B) is used with the sewing machine with a thread trimmer.
	B1109012i0B	1.6	4	2
	B1109012i0F	1.6	4	2
	B1109012T00	1.6	3	2.6	B1613012T00	1.5	B1524012TA0 B15240120A0 B15245520A0 D1524126WA0 D1524555BA0 *11028156	Light eight	Suited to the material which is likely to cause stihch skipphg and puckering. (For tricot) Chain off thread is likely to be made.		Slightly lower the pressure of the presser foot. A thin needle (#8 to #10) is sulted. Throat plate (B1109012T0B) provides higher durability than throat plate (B1109012T00). Throat piate (B1109012T00) is used with regular types of sewing machine. Throat plate (B1109012T0B) is used with the sewing machine with a thread trimmer. Throat plate (B11090121T0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm.	DDL-5550N DDL-5550NA
	B1109012T0B	1.6	3	2.6
	B1109012T0F	1.6	3	2.6
	B1190543000	2.4	3	2	B1621543000	1.8	B15115430A0 *B1511543BA0	Heavy weight	For sewing heavy-weight materials in general (Denirm and fabric for coats).		Slightly increase the pressure of the presser foot.	DDL-5550N
	B1109552000	1.8	4	2.05	B16135552000 B1613012i00 B1614552A00	1.15	B15240120A0 B1524012TA0 B15245520A0 D1524126WA0 D1524555DA0 *11028156	Light weight/ Medium weight	Throat plate has engraved marker lines and numbers at intervals of 1/4.
	B1109555000	1.8*2.7	4	2.6	B1613555A00 *B1613555B00	2 1.2		Medium weight/ Heavy weight	Suited to long-sized materials which need to be fed straight.
	B1109555C00	1.6	4	2	B1613555C00	1.2		Light eight	Suited to long-sized materials which need to be fed straight.
	B1109555D00	1.8*2.5	4	2.6	B1613555D00	1.5		Heavy weight	Suited to long-sized materials which need to be fed straight.		Slightly increase the pressure of the presser foot.
	B1109555G00	1.6	6	2	B1613555G00	1.15	B15240120A0 B1524012TA0 B15245520A0 D1524126WA0 D1524555DA0 D1524555DAC 11028156	Medium weight	Ahigher efficiency of feed is obtained. The material is fed straight.		Please use a stitching pitch at 3mm or less. Presser foot (asm.) (D1524555DBC) has a wider sole, which means it provides a still higher effciency of feed.
	B1109555J00	2.4	6	2.3	B1613555J00	1.5		Medium weight/ Heavy weight			Presser foot (asm.) (D1524555DBC) has a wider sole, which means it provides a still higher effciency of feed.
	B1109555H0B	2.6	3	2.6	B1613555H00	1.8	B1511543BA0 *B15115430A0	Heavy weight	For sewhg heavy-weight materials in general.		Slightly increase the pressure of the presser foot. *Throat plate (11074101) has marker lines and numbers on it at a 5mm interval.	DDL-5550NH
	11074101	2.6	3	2.6	B1613555H00	1.8	B1511543BA0 *B15115430A0	Heavy weight	For sewhg heavy-weight materials in general.			DDL-5550NH
	B1109555i0N	1.6	4	2	B1613012i00	1.15	B1524555DAN	Light eight	Suited to the sewig of frictional materials.		Throat plate and presser foot (asm.) have been finished with nidax.	DDL-5550N DDL-5550NA
	B1109555R00	1.3	3	2.6	B1613555R00	1.15	D1524555DA0 D1524155WA0 D1524555BA0		For sewing light-weight materials in general.		Presser (pair) (D1524155WA0) has a narrower needle groove width at 1mm. A thin needle (#8 to #11) is suited.
	D1109126W00	1.2	3	2.6	B1613012B00 B1613012A00 B1613012A0B	1.15 1.5 –	D1524126WA0 B15240120A0 B1524012TA0 B15245520A0 D1524155WA0 *D1524555DA0		Suited to the material which is likely to cause stihch skipphg and puckering. Since the needle hole of the throat plate has grooves, well-tensed seams are promised.		Slightly lower the pressure of the presser foot. A thin needle (#8 to #10) is sulted. Throat plate (B11090126W0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm. Shce the feed dog (D1613155W0D) has long teeth, the material can be fed straight. It is used with the stitch length set to 2mm or less.
	D1109126W0F	1.2	3	2.6	B1613012B00 B1613012A00 B1613012A0B	1.15 1.5 –
	D1109155W00	1.3	4	2	D1613155W00 *D1613155W0D	1.15			Suited to the sewing of extra light weight materials and synthetic fabrics using synthetic thread. Since the needle hole of the throat plate has grooves, well-tensed seams are promised.
	D1109155W0F	1.3	4	2	D1613155W00 *D1613155W0D	1.15
	D1109555D0i	1.6	4	2	B1613012i00	1.15	D1524555DA0 B15240120A0 B1524012TA0 B15245520A0 D1524126WA0	Light eight	Suited to the material which is likely to cause stihch skipphg and puckering. Throat plate (B11090121D0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm. Throat plate (11074002) has engraved marker lines and numbersat intervails of 5mm.		Slightly lower the pressure of the presser foot. A thin needle (#8 to #10) is sulted.	DDL-5550N DDL-5550NA
	D110955D0F	1.6	4	2
	11074002	1.6	4	2
	D1190555D0W	1.3	4	2	D1613155W00	1.15

* Replaceable gauge.
