Features

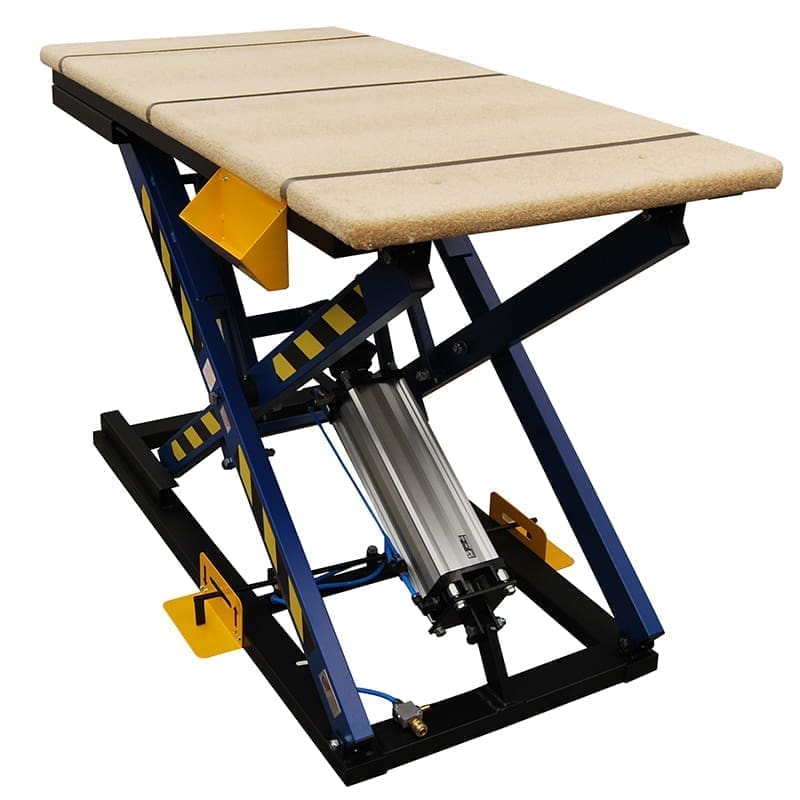

- This solid construction is based on steel profiles and pneumatic cylinder.
- The pneumatic cylinder is foot-controlled.
- The table has a connection slot for pneumatic tools.
- After turning the table off it blocks automatically (cutting power off does not make the table fold).
- The table can be equipped with a drawer for upholstery tools.
- It has been proven that using our lifting tables decrease the use of energy by 15% in comparison to upholstery trestles.
- An increase in productivity of at least 14% has been observed when employees used our lifting tables instead of regular upholstery trestles.
Specification
| Model | ST-3/MINI |
| Working Pressure | 6 bar (87 PSI) |
| Table top dimensions | 1600 mm x 900 mm (62.99″ x 35.43″) |
| Pneumatic cylinder | D125x360 |
| Minimum height | 320 mm |
| Maximum height | 1060 mm (41.73″) |
| Maximum load | 130 kg (286.6 lbs) |
