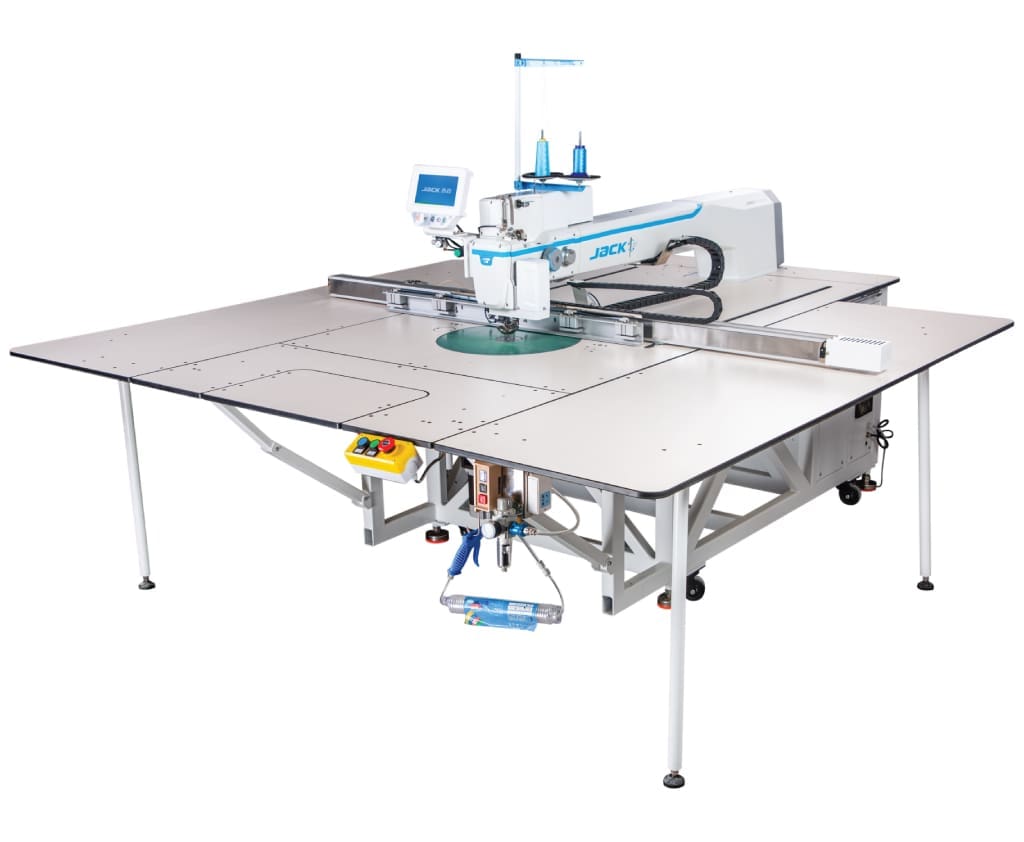

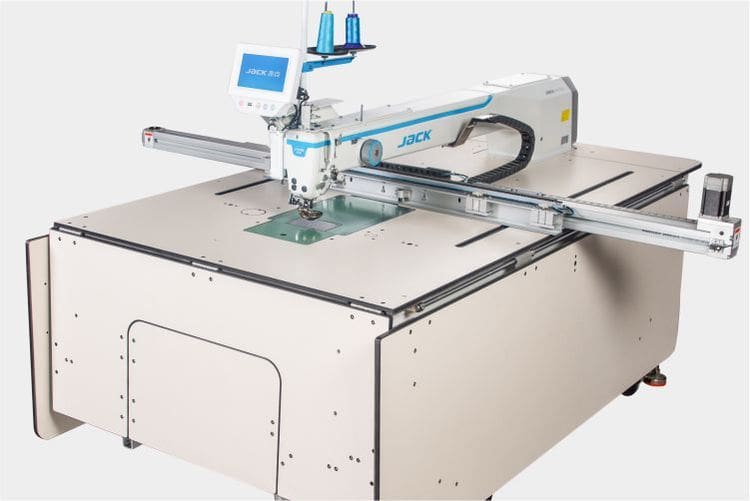

Foldable
Sewing area 140x95cm, however, thanks to the folding and sliding side and front tables, it is possible to reduce the overall dimensions in 1 minute and transport it very easily without having to disassemble it.
Applications
It can be used for light jobs such as down jackets, collars, pockets, shirts but also on Heavy Duty materials such as jackets, leather bags, automotive, home decoration.

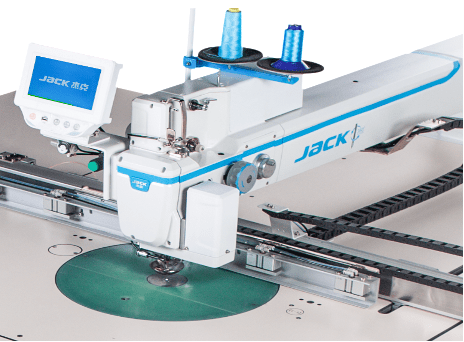

360° Rotating Needle Bar
The needle bar and the hook can rotate infinitely in sync, keeping the stitches always in the same direction, always resulting in perfect curves and corners.
RFID Reader
The radio frequency reader reads disks where you can save the drawing of sewing endless times. When you approach the template, the machine will automatically change the drawing.

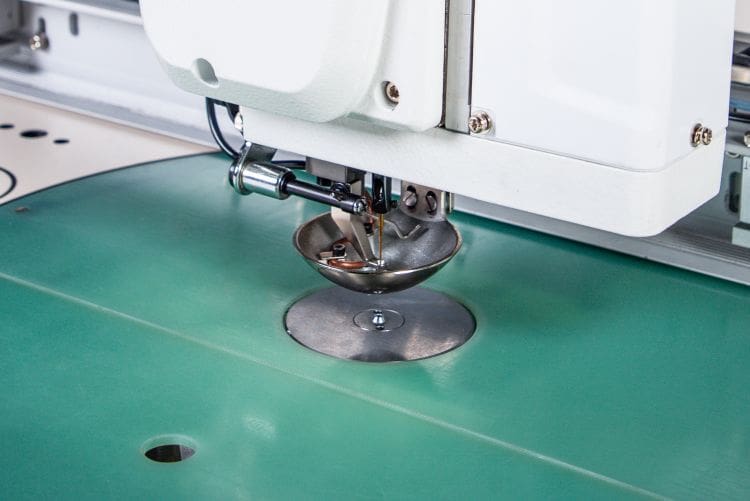

Electronic Jumping Foot
The smart foot stays down longer waiting for the needle to rise to prevent stitches jump and break. It is also possible to set different heights in different seam sections.

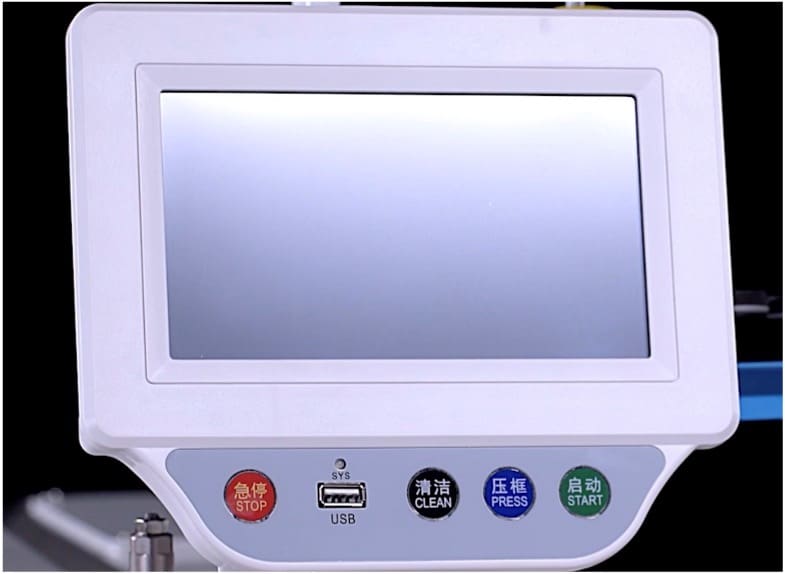

Touch Display
The quick buttons allow you to quickly activate the most used functions: emergency stop, air cleaning, descent of the template clamps and start of sewing.

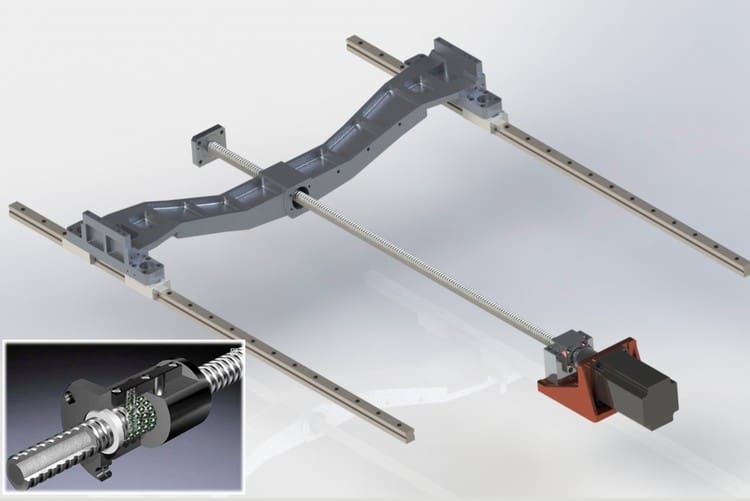

Double Screw Transmission
Improves transmission accuracy, reduces vibration and improves seam stability. The tracks with recirculating ball slide where the Y axis slides prevent dust and remnants of thread from settling, reducing fluidity.

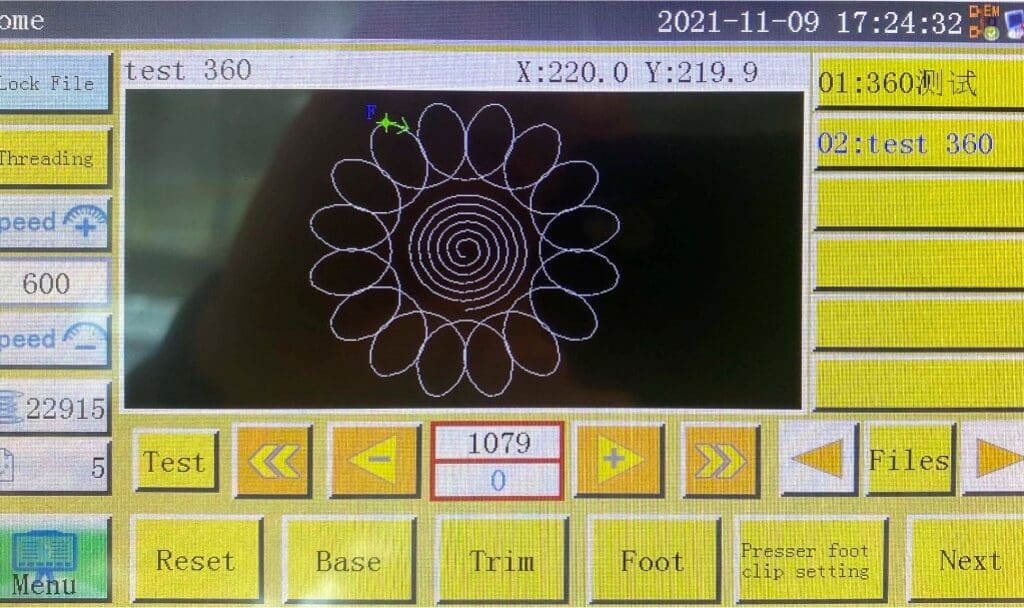

On-Board Programming
Thanks to the simple and intuitive interface, it is possible to create programs from the display or via PC software and import them via USB or wifi with IOT.
![card6[1]ajack-mx100-on-board-programming](https://b3559529.smushcdn.com/3559529/wp-content/uploads/2022/08/card61-17-1024x608.jpg?lossy=2&strip=1&webp=1)

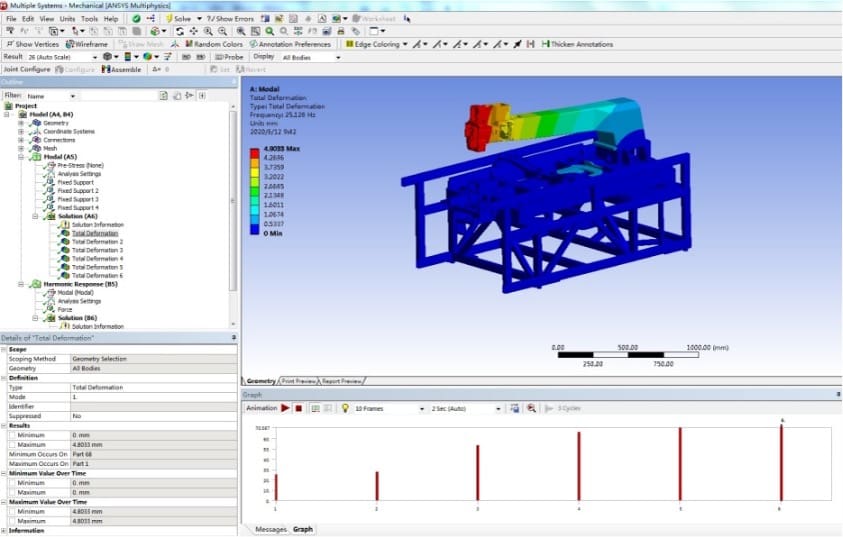

Vibration Reduction
Thanks to the emulation and dynamic balance analysis software, it was possible to increase the absorption of vibrations, now the resonance point of the entire machine is 1400r / min.

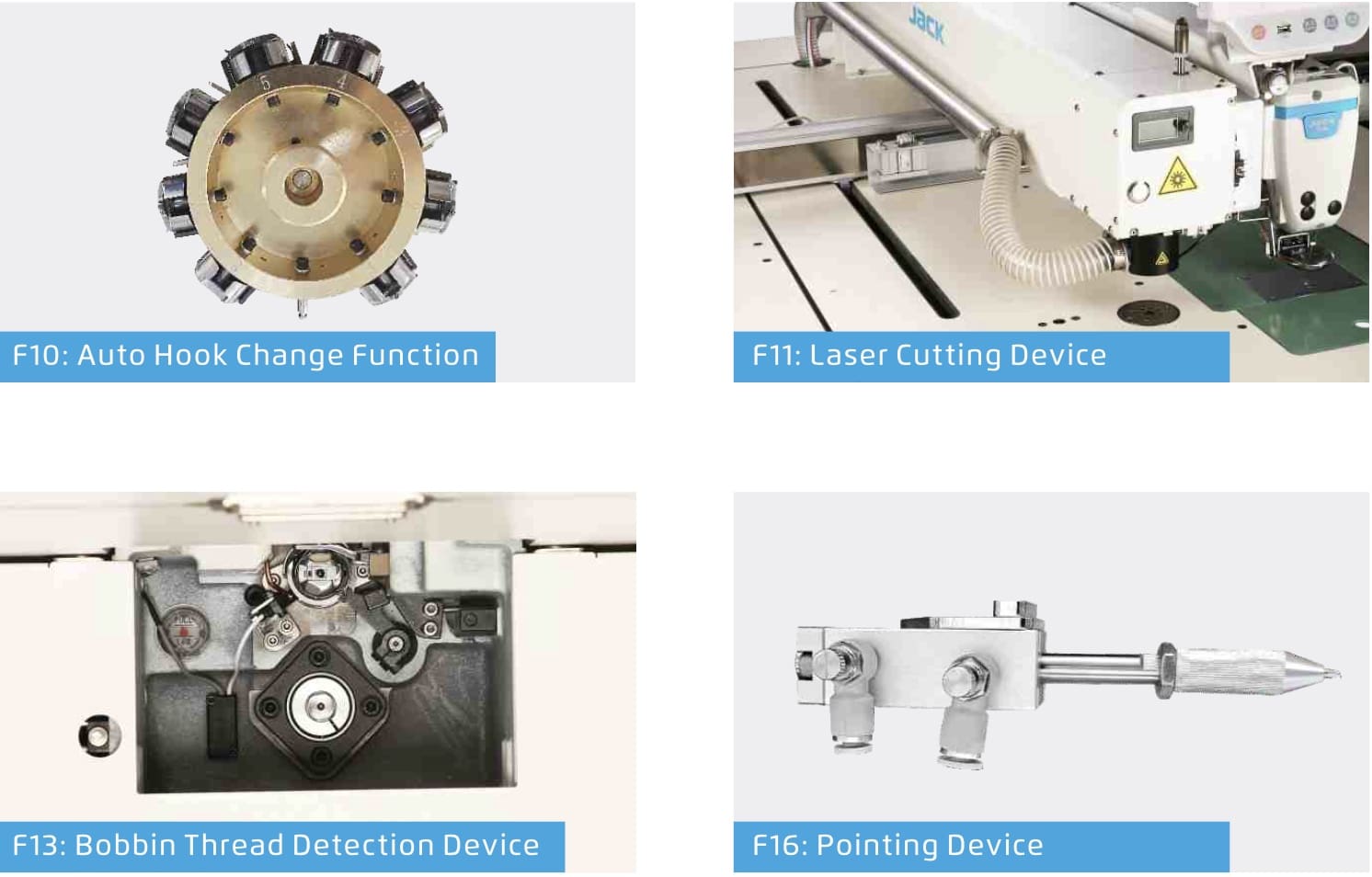

Optionals
Automatic bobbin change, laser cutting grazing the seam, fine bobbin raising to avoid sewing empty and nib to mark precise points where to attach pockets or other processes are available.
