General Features
- Automatic Thread Trimer
- Automatic Thread Break Detection
- Built-in Bobbin Thread Winder
- LCD Touch Screen Control Panel
- Laser Position Marker
- Direct PC Connection USB/LAN
- PC Communication Software
- 12 Fonts 6 Sizes Lettering
- Built-in 100 One-point Designs
- Embroidery Pattern Loading USB pen drive
Specification
| Number of Needle | 15 |
| Number of Head | 1 |
| Maximum Speed Tubular | 1500rpm |
| Max Speed Cap | 1200rpm |
| Max Embroidery Field (X,Y) | 400 x 600mm / Option: 400 x 1,200mm |
| Stitch Length | 0.1-12.7mm |
| Memory | 40milion stitches / 999 Designs |
| Power Supply | Single Phase 100-120V 200-240V |
Options
Center Cross Marker
Laser marker which points from directly above

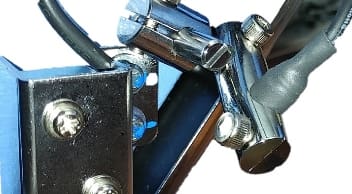

Side-mounted Laser Pointer
Laser marker which points from the side
Bobbin Winder
Option for HCU

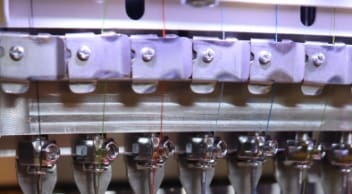

Upper Thread Holder
No more trouble with upper thread escaping from needles

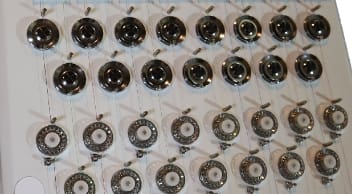

Digital Thread Tension Control System
The upper thread tension can be set digitally on the control panel
10.4 inch LCD Panel
Optional larger monitor
HCU’s Front Table
Supports for tubular frames to suppress shakes
HCU’s Border Table
Supports for border frames to suppress shakes

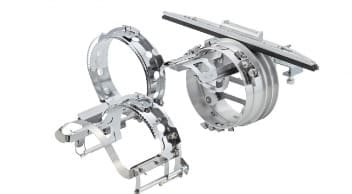

Cap Frame
For embroidery work on caps
One Point Frame
For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.
Shoe Clamp
For embroidery work on shoes
Sock Frame
For embroidery work on socks and other small products
