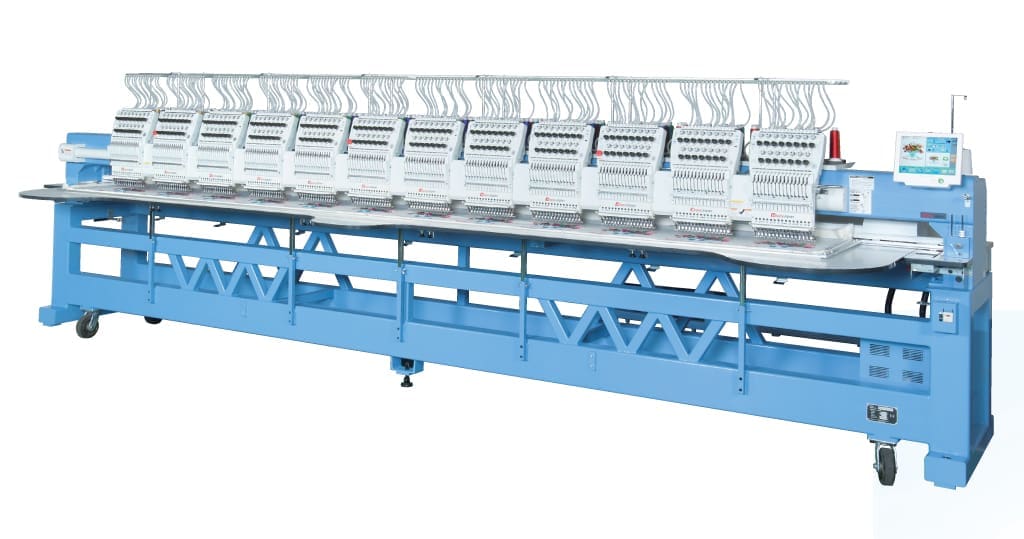

General Features
- Automatic Thread Trimer
- Automatic Thread Break Detection
- Built-in Bobbin Thread Winder
- LCD Touch Screen Control Panel
- Laser Position Marker
- Direct PC Connection USB/LAN
- PC Communication Software
- 12 Fonts 6 Sizes Lettering
- Built-in 100 One-point Designs
- Embroidery Pattern Loading USB pen drive
Specification
| Number of Needle | 15 |
| Number of Head | 2-12 |
| Maximum Speed Tubular | 1,000 – 1,200rpm |
| Max Speed Cap | 850 – 1,100rpm |
| Max Embroidery Field (X,Y) | 450 x 360 or 450 x 500mm |
| Stitch Length | 0.1-12.7mm |
| Memory | 40milion stitches / 999 Designs |
| Power Supply | Single Phase 200-240V |
Options
Bobbin Winder
Option for HCR series
10.4 inch Display Monitor
Optional larger monitor
Upper Thread Holder
No more trouble with upper thread escaping from needles
Laser Position Marker
No more hitting frames
Safety Sensor Front & Rear
For avoidance to get injuries by accidentally touching working machines
Border Frame
For embroidery work on original fabrics
Cap Frame
For embroidery work on caps
One Point Frame (long type)
For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.
Sequin & Zigzag Cording
For additional decorations on embroideries
Borer Device
Hollowing out garments for lace embroidery etc.
Spider Frame
Option for HCR series
Round Frame Preparation Base
Preparation base to reduce clumsiness for round frames
