Features

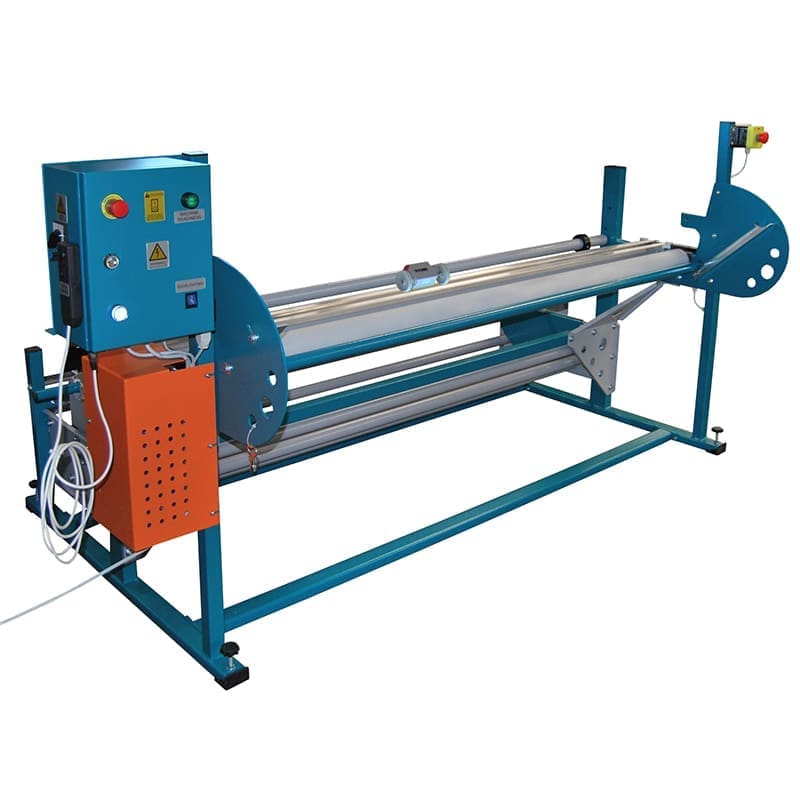

Rewinding / inspection machines with backlighting screen provide fast, easy quality control and measure fabric length.
Machines can have a built-in lay manual (version /R) or semi-automatic (version /A) end-cutter for increased efficiency in the workplace.
A perfect choice for all textile manufacturers and businesses that deal with any kind of fabric.
The machine winds fabric from a roll placed inside the cradle on a core placed on a winding shaft.
High winding speed (50 m/min or 60 m/min).
Mechanical counter (yards or meters).
Easy fabric roll installation.
Frame made of powder-coated steel.
Specification
| Model | 3PL |
| Voltage | 230 V |
| Maximum width of fabric roll | 190 cm (74,80″) |
| Maximum roll diameter | 50 cm (19,69″) |
| Maximum rewindable weight of roll | 40 Kg |
| Power | 0.18 kW |
| Maximum winding speed | 50-60 m/min |
| Screen | No |
| Сounter for yards or meters | Yes |
| Cradle for roll | Yes |
