Features

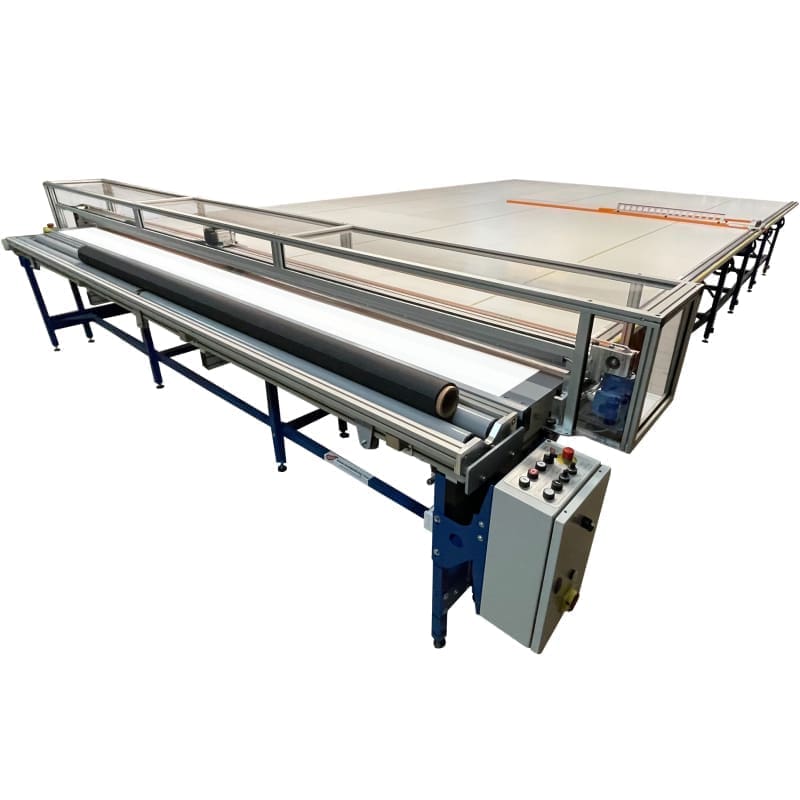

- The UK-4 table can cut roller blinds fabric from rolls up to 4000 mm width.
- Table construction is made of closed, high quality steel profiles with powder coating which provides longstanding and protection against corrosion for a very long time.
- Additional transparent knife assembly cover increases overall table safety.
- Table top edges protected with PVC.
- Brand new mechanical knife construction with high speed electrical servomotor helps to achieve a very accurate fabric cut.
- Two direction cutting ability. By pressing a button on the control panel at any time one can stop the knife and change the direction and continue cutting.
- Big backlighting screen is situated between the cutting line and material feed device.
- Precise length and angle measuring device is designed to regulate angles and length of the required fabric piece.
- It is possible to adjust height of the table using adjustment screws in the legs of the table.
- The table consists of the two pieces: cutting module itself and the post cutting module.
Standard lengths of post cutting table after cutting line are: 3400 mm, 4000 mm. Other lengths are available on individual request. - A standard version of the table is equipped with manual roll centering system and clamp foot switcher on a metal cable along the table.
- Optionally the table can be equipped with semi-automatic fabric feed system: the feed rollers start to rotate thus making feed or winding heavy fabric rolls. Feed rollers are controlled by foot pedals or remote controllers (two pieces in set).
Specification
| Model | UK-4 |
| Table top width | 4200 mm (78.74″) |
| Table length after cut | 3400 mm, 4000 mm or bigger |
| Voltage | 230 V |
| Power | 700 W |
| Overall width of the table | 4710 mm |
| Overall length of the table | 4140 mm or more |
| Table Height | 900 mm |
| Knife head movement speed | 0,3 m/s, Max: 0,5 m/s |
| Blade rotation speed | 4000 RPM |
| Blade diameter | 108 mm |
| Round cutting knife | Yes |
| Clamp foot switcher | Yes |
